DC.1300c - CMEX-1 digital 1.3 Mpix USB-2 CMOS camera

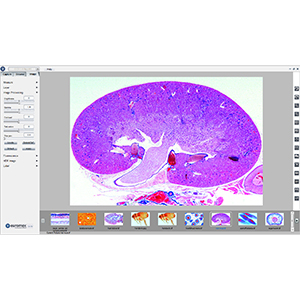

The CMEX-1 camera is equipped with a CMOS sensor with 10 bits grayscale conversion and a 24 bits color rendering. The CMEX camera is equipped with a USB-2 data interface and supplied with ImageFocus 4 software

TECHNICAL SPECIFICATIONS CMEX-1 (DC.1300c)

Sensor CMOS 1/2.5 inch
Pixels                           1280 x 1024 pixels, 1.3 Mpix
Scan mode                   Progressive, rolling shutter
Pixel size 2.2 μm x 2.2 μm
Filter RGB
Mount C-mount
Max fps Up to 15 frames per second (1272 x 952 pixels)
Up to 30 frames per second (632 x 472 pixels)
ADC 10 bits
Color depth 24 bits
Sensitivity 1.3 V/lux-sec @ 550 nm
Exposure Automatic or manual, from 1 ms to 300 ms
White balance             Automatic/manual
Dynamic range             72 db
S/N max                       55 db
Data interface USB 2.0 at 480 Mb/s
Operation                     0 – 60° C, 45-85 % humidity
Storage temperature -20 to 70° Celsius
Supplied with               0.5x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for
stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), CD ROM with
ImageFocus 4 software, carton box
Software Windows 7 and higher (32 and 64 bit configurations)

€ 188,00
€ 227,48 VAT incl.

Order product Ask your question
