DC.12000f - CMEX-12f 12.0 MP digital USB-2 color camera with 1/2.3 inch CMOS sensor

CMEX-12f
12.0 MP digital USB-2 color camera with 1/2.3 inch CMOS sensor

Sensor CMOS 1/2.3 inch with 4000 x 3000 pixels, 12.0 MP
Scan mode Progressive, rolling shutter
Pixel size 1,33 μm x 1,33 μm
Filter RGB
Mount C-mount
Max fps Up to 15 frames per second (4000 x 3000 pixels)
Max fps Up to 30 frames per second (2592 x 1944 pixels)
greyscale conversion 8 bits, color rendering 24 bits
Sensitivity >1,5 V/lux-sec @ 550 nm
Exposure Automatic or manual, from 1 ms to 2000 ms
White balance Automatic / Manual
Dynamic range 60 db.
Data interface USB 2.0 at 480 Mb/s
Operation 0 – 60° C, 10-85 % humidity. Storage temperature -20 to 70° Celsius
Supplied with 0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for
stereo microscopes, 76 x 24 mm calibration slide (1mm/100) ImageFocus Plus software,
carton box
Software Windows 7/8/10/11 (32 and 64 bit configurations) and Mac OS
Compatible with Intel Core 2, 2.8 Gaz or higher, 4 GB, USB-2 port, 17 inch display

€ 457,00
€ 552,97 VAT incl.

Order product Ask your question

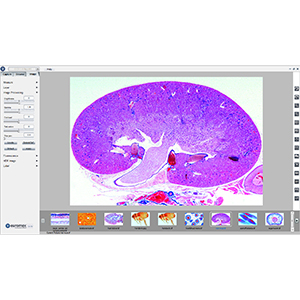

DC.1311 - ImageFocus Software on CDROM

Price: € 19,20 € 23,23 VAT incl. Add to shopping cart

AE.1112 - Object micrometer 50 mm divided in 500 parts on glass slide 76 x 26 mm

Price: € 72,00 € 87,12 VAT incl. Add to shopping cart

AE.1111 - Stage micrometer 2 mm, divided into 200 parts, on 76 x 26 mm glass slide

Price: € 62,00 € 75,02 VAT incl. Add to shopping cart

AE.1110 - Stage micrometer 1 mm, divided into 100 parts, on 76 x 26 mm glass slide

Price: € 50,00 € 60,50 VAT incl. Add to shopping cart

AE.5015 - Universal photo adapter with objective and CS mount for standard 23.2 mm tube

Price: € 148,00 € 179,08 VAT incl. Add to shopping cart

AE.5017 - Objective with CS mount to be mount on third tube of F/G and M series microscopes

Price: € 79,00 € 95,59 VAT incl. Add to shopping cart

DC.1330 - 30 to 23.2 mm CMEX metal adapter for eyepieces of stereo microscopes with internal 30 mm diameter

Price: € 5,80 € 7,02 VAT incl. Add to shopping cart

DC.1335 - 30.5 to 23.2 mm CMEX metal adapter for eyepieces of stereo microscope with internal 30.5 mm diameter

Price: € 5,80 € 7,02 VAT incl. Add to shopping cart

DC.1340 - Fixation tube to fix CMEX camera to standard 23.2 mm tube

Price: € 16,20 € 19,60 VAT incl. Add to shopping cart
