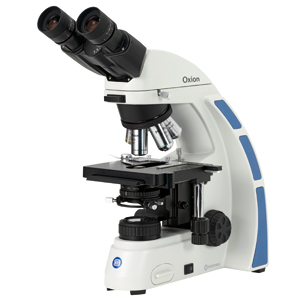

Euromex Oxion for Bright- and Dark field contrast

Oxion series microscopes for demanding Life Science applications

• Wide Field eyepieces HWF 10x / 22
• Semi Plan SMP 4x 10x 20x S40x and S100x-oil objectives for bright field contrast
• Plan PL 4x 10x 20x S40x S60x and S100x-oil objectives for bright field contrast
• Plan Semi-Apochromatic PL APO 4x 10x 20x S40x and S100x-oil objectives for bright field contrast
• Binocular and trinocular models
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• Height adjustable Cardioïd mirror and oil-immersion condenser N.A. 1.25 with integrated 5 W NeoLed illumination
• Large stage with ball beared XY translation stage with optional heating elements and temperature controller
• Adjustable 3 W NeoLed transmitted illumination for bright field
• Adjustable 5 W NeoLed transmitted illumination for dark field field, integrated in cardioïd mirror oil-immersion condensor

These microscopes can be further extended with optional:

• Zernike phase contrast and bright field disc condenser with 4 phase rings
• Zernike phase contrast and bright field disc condenser with 3 phase rings and darkfield stop
• Phase contrast sliders
• Polarizer and Analyser
• Fluorescence equipment

Models OX.3012 to OX.3015 are equiped with standard Semi-Plan objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan objectives for bright field applications
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic objectives for bright field applications
Model OX.3064 is equiped with standard Plan 4x, 10x, S40x objectives and a S100x oil-immersion with integrated iris diaphragm objective and a Cardioïd oil-immersion mirror condenser with integrated 5 W NeoLed illumination

OX.3012 | Euromex binocular microscope for bright field

Binocular microscope with achromatic Semi Plan 4x, 10x, S40x and S100x oil objectives and 3 Watt LED illumination View OX.3015 | Euromex trinocular microscope for bright field

Trinocular microscope with achromatic Semi Plan 4x, 10x, S40x and S100x oil objectives and 3 Watt LED illumination View OX.3020 | Euromex binocular microscope for bright field

Binocular microscope with achromatic Plan 4x, 10x, S40x objectives and 3 Watt LED illumination View OX.3025 | Euromex trinocular microscope for bright field

Trinocular microscope with achromatic Plan 4x, 10x, S40x objectives and 3 Watt LED illumination View OX.3030 | Euromex binocular microscope for bright field

Binocular microscope with achromatic Plan 4x, 10x, S40x and S100x oil objectives and 3 Watt LED illumination View OX.3035 | Euromex trinocular microscope for bright field

Trinocular microscope with achromatic Plan 4x, 10x, S40x and S100x oil objectives and 3 Watt LED illumination View OX.3050 | Euromex binocular microscope for bright field

Binocular microscope with Plan Semi-APO 4x, 10x, S40x objectives and 3 Watt LED illumination View OX.3055 | Euromex trinocular microscope for bright field

Trinocular microscope with Plan Semi-APO 4x, 10x, S40x objectives and 3 LED Watt illumination View OX.3060 | Euromex binocular microscope for bright field

Binocular microscope with Plan Semi-APO 4x, 10x, S40x , S100x oil objectives and 3 Watt LED illumination View OX.3065 | Euromex trinocular microscope for bright field

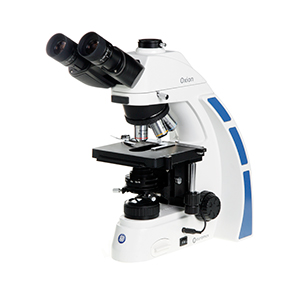

Trinocular microscope with Plan Semi-APO 4x, 10x, S40x , S100x oil objectives and 3 LED Watt illumination View OX.3064 | Euromex trinocular microscope for dark field

Trinocular microscope with achromatic Plan 4x, 10x, S40x and S100x oil with iris diaphragm objectives, Cardioid mirror Oil-immersion condenser with built-in 5 Watt LED illumination View
